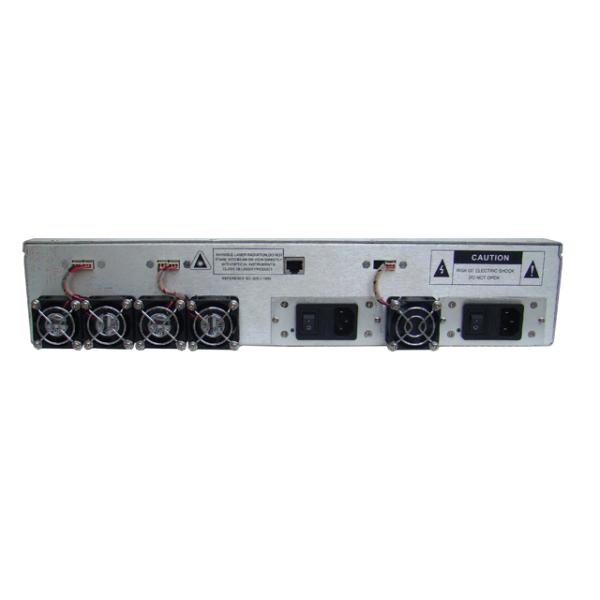

1550nm CATV Equipment WDM EDFA Optical Amplifier 32 Ports 23dBm 483x468x88mm

Product Categories

SHAANXI JIZHONG ELECTRONICS SCIEN-TECH CO.,LTD.

Contact Now

Name: 1550nm CATV Equipment WDM EDFA Optical Amplifier 32 Ports 23dBm 483x468x88mm
Brand: JiZhong
Price: 1 USD

Brand Name : JiZhong

Model Number : JZEYDFA

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Outer Carton:61x60x28CM Weight:18Kg per carton; Qtys:1pcs per carton

Working wavelength : 1530~1565nm

Input optical power : -10~+10dBm

Noise factor (+3 dBm,@1550nM) : ≤4.5dB

C/N : >52dB

C/CTB : >65dB

C/CSO : >65dB

input/output optical reflection loss : ≥ 50dB

Dimension : 483x468x88mm

Contact Now

1550nm CATV Equipment High Power Amplifier EDFA 32 Ports WDM EDFA 23dBm

Performance Features:

Adopts Er Yb Codopeddouble-clad fiber technology;

Output ports: 4-64 optional;

Optical output power: total output up to 10W;

Low noise figure: <5dB when input is 0dBm;

Perfect network management interface, in line with standard SNMP network management;

Intelligent temperature control system make the power consumption lower;

Technical Parameters:

Item		Unit	Technique parameters	Remark
Operating bandwidth		nm	1530 - 1560
Optical input power range		dBm	-10 - +10
Maximum optical output power		dBm	40
Output power stability		dBm	±0.5
Noise figure		dB	≤ 5.0	Optical input power0dBm, λ=1550nm
Return loss	Input	dB	≥ 45
Return loss	Output	dB	≥ 45
Optical Connector Type			SC/APC,SC/PC (LC/APC；LC/PC
C/N		dB	≥ 50	Test condition according to GT/T 184-2002.
C/CTB		dB	≥ 63
C/CSO		dB	≥ 63
Power supply voltage		V	A: AC160V - 250V (50 Hz) B: DC48V
Operating temperature range		°C	-10 - +42
Maximum operating relative humidity		%	Max 95% no condensation
Storage temperature range		°C	-30 - +70
Maximum storage relative humidity		%	Max 95% no condensation
Dimension		mm	483(L)×440(W)×88(H)

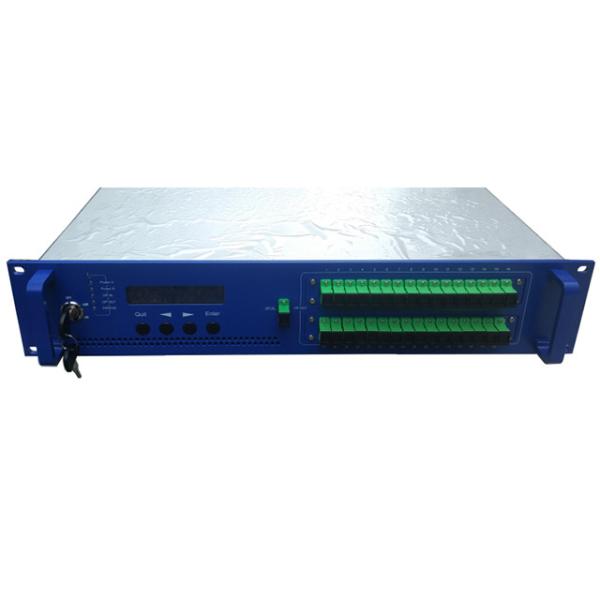

Product Display:
